Fire Fighting

EBARA-EVM - VERTICAL MULTI-STAGE STAINLESS STEEL PUMPS

EBARA-EVM – VERTICAL MULTI-STAGE STAINLESS STEEL PUMPS

APPLICATIONS

Ebara-EVM-Series• Civil, Industrial, farming, fire-fighting, boosting systems
• Water treatment plants (reverse osmosis, filtrations)
• Irrigation system
• Washing system
• Movement of hot and cold water for heating, cooling and air-conditioning system.
• Boiler feeding
• Movement of moderately aggressive chemical liquids without solids.

Water treatment

• reverse osmosis systems
• distillation systems
• filtration
• light chemical applications;



Industrial washing systems

• car washing, bottle and glassware washing,
parts washing, crate washing, washing and
finishing of metal parts, vegetable washers, and
seafood washing applications
• fire-fighting systems;

Heating and conditioning

• hot water circulation
• cooling systems
• industrial boilers;
Water supply
and pressurization
• pressure boosting
• machine tools;
Agriculture and irrigation

• field irrigation
• sprinkler irrigation
• drip irrigation.

MATERIALS

Ebara-EVM• Impeller, diffusers, casing cover, outer casing, shaft sleeve, coupling covers,
fixing in contact with liquid: AISI 304 stainless steel
• Bottom casing: AISI 304 stainless steel (EVM) – cast iron (EVMG),
AISI 316L (EVML)
• Motor bracket and base: cast iron (not in contact with the pumped liquid)
• Bearings (in contact with liquid): tungsten carbide
• Mechanical seal: Silicon carbide/carbon/Viton
• Shaft: AISI 316 stainless steel
• Tie rods and fixings not contact with liquid: zinc coated stainless steel

CARTRIDGE SHAFT SEAL

EVM 32-45-64 pumps mount the carridge shaft seal
All components of a cartridge shaft seal constitute a sole part on a shaft sleeve. The cartridge mechanical seal is ready to
be installed between pump shaft and motor shaft. The most important benefits of this kind of seal are:
• Easy to install
• Protected seal faces
• Safe and easy handling
We are at disposal for evaluating your specifications and needs in order to find the best solution for your plants and
applications.

MOTORS

• Pumps configured for the installation of a standard IEC motor
• Pumps suitable for different motor types: explosion proof, high efficiency, low noise and with integrated inverter
(EVM VS)
• 50 – 60 Hz
• 2 – 4 poles
• Motors with various voltages and frequencies
• Motors conforming to UL/CSA standards on request.



EBARA              GRUNDFOS              KSB             WILO           TSURUMI

EBARA FIRE FIGHTING PUMPS

Features Ebara Fire Fighting Pumps

  • Non Overload design to ensure stable performance for all applications
  • Corrosion resistant materials used on the rotating parts
  • Hydraulically balanced impeller extends bearing life and assures smoother operation
  • Fully compliance to NFPA-20 and certified by Underwriters Laboratories (UL)



Specification Ebara Fire Fighting Pumps
  • End Suction Pumps *) Ebara Fire Fighting Pumps

Easy removal and maintenance, BPO (Back Pull Out) system allows all rotating elements to be removed without disconnecting suction and discharge pipe work. Top centreline discharge, foot support under casing for maximum resistance to misalignment and distortion from pipe loads. Flow rate capacity 250 up to 750 USGPM. Working pressure up to 250 psi with 250 lb. ANSI Flanges.

*) UL File Number “EX15585”

  • Horizontal Split-Case Pumps **)

Very compact design for easy of installation and permits minimum maintenance. Axially split casing allows the easy removal of the top casing for inspection and service. Available in horizontal or vertical configuration. Available in clockwise or counter clockwise rotation to simplify pump room layout. Flow rate capacity 500 up to 1250 USGPM. Working pressure up to 250 psi with 250 lb. ANSI Flanges.Ebara Fire Fighting Pumps.

Material
  • Ebara Fire Fighting Pump Casing Ductile cast iron (FCD450) for FSA model; Cast iron (FC250) for CNPA model, Impeller bronze casting (CAC406), Shaft Stainless steel (SUS316), Shaft sleeve Bronze casting (CAC406), Gland packing Teflon (PTFE) impregnate

Wilo-Multivert-MVIE - Vertical multistage centrifugal with integrated frequency converter



Design

Wilo-Multivert mvie-403Non-self-priming multistage pump with
integrated frequency converter

Application

• Water supply and pressure boosting
• Industrial circulation systems
• Process engineering
• Cooling water circulation systems
• Washing and sprinkling systems

Q max.

145 m³/h

H max.

245 m



Technical data

• Fluid temperature -15 to +120 °C
• Operating pressure max. 16 bar/25 bar
• Inlet pressure max. 10 bar
• Protection class IP 54 or IP 55

wilo-multivert_mvie-curves

Equipment/function

• Stainless steel pump in in-line design
• PN 16 with oval flanges
• PN 16/25 with DIN round flanges,
Victaulic connections depending on
pump type
• Single-phase or three-phase current
standard motor
• Integrated frequency converter
• Integrated thermal motor protection
• Protection against low water level





Special features

• Easy commissioning
• Full motor protection
• Large control range
• MVIE 2..-16..-6
All parts that come in contact with the
fluid made of stainless steel 1.4301
(AISI 304) or 1.4404 (AISI 316L)
• MVIE 16..-95..
depending on pump type in stainless
steel 1.4404 (AISI 316L) or 1.4301 (AISI
304) with pump housing made of grey
cast iron EN-GJL-250, cataphoretic
coating
• All relevant components have KTW and
WRAS approval



EBARA            GRUNDFOS            KSB            WILO          TSURUMI

Grundfos NBF and NKF is an end-suction pump made for fire sprinkler pump applications.

Overview

Grundfos NBF is an end-suction pump made for fire sprinkler pump applications. NBF is a close-coupled type and NKF is a long-coupled type.

The NKF fire system is an NBF or NKF end-suction pump integrated with a coupling and a driver, which may be an electric motor or a diesel engine, assembled on a base frame.

Electric pump types can be ordered as a COMPACT model (inclusive of a controller integrated onto the baseframe).

Diesel-driven NKF. A controller always forms a part of the system.

Materials

The pump materials are in compliance with EN 12845 and prEN12259-12:

  • Impeller and wear rings are made of bronze
  • Wet parts such as shaft, washers and nuts are made of stainless steel
  • Castings are made of cast iron.

Controller

Grundfos-Fire system-3Grundfos offers a complete, factory-assembled controller in a steel plate cabinet, suitable for wall mounting or to install free-standing. The controller complies with the EN 12845 standard. The controller for diesel-powered pumps is always mounted on the base frame.





Electric motor

Grundfos-Fire system-2The electric motor is an MG or MMG motor complying with local standards for electric motors. As from 16 July 2011, the motors used in Europe will be IE2 = EFF 1 motors.







Diesel engine

Grundfos-Fire system-1The diesel engine can operate continuously at full load at site elevation with rated output in accordance with ISO 3046-1:1986. The pump reaches full operational speed within 15 seconds; the engine is capable of starting at a room temperature of 5 °C.

Each complete engine pump unit is tested on the manufacturer’s test bed for at least 1.5 hours at rated flow rate, and the result recorded on the test certificate.



Applications

The Grundfos fire pump units are typically used in fire-fighting applications for supplying water to fire-hose reels, fire hydrants or sprinkler systems.



Features and benefits

  • Pumps are made according to EN12845 and PrEN12259-12
  • Electric or diesel powered
  • Designed for superior functionality and performance reliability
  • Simple installation and easy maintenance
  • Compact design
  • Customised and reliable solutions
  • Widest range from one supplier.

Benefits

  • Wide performance range
  • Customised solutions
  • Compact design



EBARA            GRUNDFOS            KSB            WILO          TSURUMI

KSB-CPKN-SX Sprinkler systems to VdS and fire protection Pump







Design

KSB-CKPN-MODULARHorizontal, long-coupled, single-stage volute casing pump in back pull-out design. Replaceable shaft protecting sleeves and casing wear rings.

Applications

Sprinkler systems to VdS and fire protection.













Overview of technical data

Type of bearing Ball bearings
Casing partition Radially split
Drive frequency 50 Hz / 60 Hz
Type of drive Electric motor, turbine, I.C. engine
Drive voltage Low voltage
No. of impeller entries Single entry
Impeller material (EN standard) 1, 4408
Type of installation Long- coupled
Type of coupling Direct
Type of lubrication Oil lubrication
Max. permissible fluid temperature 20
Nozzle position End suction
Maximum rated pressure (discharge) 25 BAR
Pull-out design Yes
Pump set location Dry installed
Shaft material (EN standard) 1. 4057;1.4462
Suction characteristics Non- priming
Suitable for drinking water Yes
Type of impeller Radial; Closed;Multi-vane impeller
Type of connection Flange
Casing material (EN standard) JS1025
eClass assignment 36410101; 36410000;36410100
Maximum head 163, 00
Minimum head 84, 00 m
Shaft seal type Mechanical seal; Gland packing
Main applications Industry and process engineering; Building services;Water
Casing material Cast iron
Maximum discharge-side pressure 25 bar
Maximum drive rating 250 kW
Type of installation Stationary
Maximum flow rate 468 m³/h
Minimum flow rate 82 m³/h
Maximum speed of rotation 3 1/min

Fire protection is a question of experience

Application-cpkn-sx_KSB
KSB leads the European sprinkler pump market – with good reason. Our experience in fire protection stretches back more than
40 years. And KSB makes its products on every continent. That
international presence is a major advantage in fire protection –
we know our way through all the standards, certifications and
regulations and are represented by fire protection experts in over
100 countries. We have the right pumps and components to
match central Europe’s VdS standard, the UK’s LPC BS 5306-2,
Spain and Portugal’s CEPREVEN, European standard EN 12845,
NFPA20/FM/UL in the USA, and a host of other national standards.
For us, quality includes delivering ideal technology. But that is
just part of our first-class service. More than 1,600 KSB specialists
in over 100 service centres provide skilled help, fast. Whether
your building is just being planned or older than all its occupants,
KSB stops fires before they really get started. Water relief!



EBARA            GRUNDFOS           KSB          WILO        TSURUMI

KSB - Movitec B-Multistage vertical high-pressure centrifugal pump



Design

Ksb-movitec-BKSB-Movitec-B Multistage, vertical, high-pressure centrifugal pump in ring-section design with suction and discharge nozzles of identical nominal diameters arranged opposite to each other (in-line design), close-coupled. ATEX-compliant version available.



Applications

Spray irrigation, irrigation, washing, water treatment, fire-fighting and pressure booster systems, hot water and cooling water recirculation, boiler feed systems etc.
Sizes
2, 4, 6, 10, 15, 25, 90







Overview of technical data

Barrel casing Yes
Type of bearing Plain bearings
Casing partition Radially split
Diffuser material (EN standard) 1. 4301;1.4404
Drive frequency 50 Hz / 60 Hz
Type of drive Electric motor
Drive voltage Low voltage
No. of impeller entries Single entry
Impeller material (EN standard) 1. 4301;1.4404
Type of installation In- line
Type of coupling Direct
Type of lubrication Oil / Product lubrication
Max. permissible fluid temperature 140 °C
Nozzle position In- line
Maximum rated pressure (discharge) 40 BAR
Pump set location Dry installed
Shaft material (EN standard) 1. 4305;1.4401
Suction characteristics Non- priming
Suitable for drinking water Yes
Type of impeller Radial
Type of connection Flange
Type of stage casing Stage casing with diffuser
UNSPSC classification 4015150300
Casing material (EN standard) 1. 4301;1.4401;JL 1040
eClass assignment 36410101
Maximum head 249, 00 m
Installation position Vertical
Shaft seal type Mechanical seal
KSB_Movitec-B-Curves























Main applications























Industry and process engineering; Water;Building services

Casing material Chrome nickel steel
Maximum discharge-side pressure 40 bar
Maximum drive rating 45 kW
Type of installation Stationary
Maximum flow rate 112, 80 m³/h
Maximum speed of rotation 2. 900 1/min



EBARA            GRUNDFOS           KSB          WILO        TSURUMI

KSB-CPKN-Standardized chemical pumps



KSB-CPKN-Standardized chemical pump with reinforced bearing bracket

ksb-cpkn1-modularsDesign

Horizontal, radially split volute casing pump in back pull-out design to EN 22 858 / ISO 2858 / ISO 5199, single-stage, single-entry, with radial impeller. Also available as variant with “wet” shaft, conical seal chamber, heatable volute casing (CPKNO-CHs) and/or semi-open impeller (CPKNO). Design to ATEX.

Applications

Handling of aggressive liquids in the chemical and petrochemical industries as well as in refinery and fire-fighting systems, handling of brine.

type-series-booklet-cpkn-140566_2bOverview of technical data

Type of bearing Rolling element bearings
Casing partition Radially split
Drive frequency 50 Hz / 60 Hz
Type of drive Electric motor
Drive voltage Low voltage
No. of impeller entries Single entry
Heatable Yes
Impeller material (EN standard) NORIDUR 1. 4593;JL 1040;1.4408
Type of installation Long- coupled
Type of coupling Direct
Type of lubrication Oil lubrication
Max. permissible fluid temperature 400 °C
Nozzle position End suction
Maximum rated pressure (discharge) PN 25
Pull-out design Yes
Pump set location Dry installed
Shaft material (EN standard) 1. 4462;1.5680;C 45+N;1.7709
Standard ISO 5199; ISO 2858;EN 22858
Suction characteristics Non- priming
Type of casing Volute casing
Type of impeller Closed; Radial
Type of connection Flange
Casing material (EN standard) NORIDUR 1. 4593;1.4408;JS 1025;GP240GH+N
eClass assignment 36410000; 36410100;36410101
Maximum head 275, 00 m
Minimum head 2, 00 m
Installation position Horizontal
Shaft seal type Mechanical seal
Main applications Energy; Industry and process engineering
Casing material Cast stainless steel; Ni-Resist;Cast duplex steel;Cast steel;Nodular cast iron
Maximum discharge-side pressure 25 bar
Maximum drive rating 3. 200 kW
Type of installation 00
Maximum flow rate 4. 800 m³/h
Minimum flow rate 1 m³/h
Maximum speed of rotation 3. 500 1/min



EBARA            GRUNDFOS           KSB          WILO        TSURUMI

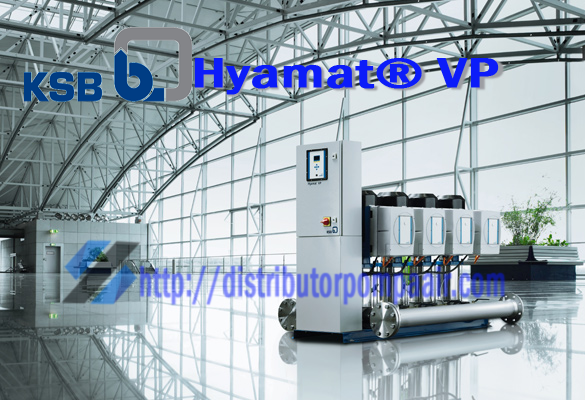

KSB-Hyamat® VP





KSB-MovitecDesign

KSB-Hyamat® VP

Fully automatic package pressure booster system, with 2 to 6 vertical high-pressure pumps and continuously variable speed control of each pump by PumpDrive speed control system.

For fully electronic control of the required supply pressure.

Configuration and functions to DIN 1988, Part 5. Automated with BoosterControl and PumpDrive.









Applications

KSB-Hyamat® VP

Pressure boosting in residential buildings, hospitals, office buildings, hotels, department stores, industry, etc.

Overview of technical data

KSB-Hyamat-VPType of bearing Plain bearings
Drive frequency 50 Hz
Type of drive Electric motor
Drive voltage Low voltage
Type of first impeller Closed / Radial
Other impeller types Closed / Radial
Impeller material (EN standard) 1. 4301
Type of coupling Direct
Type of lubrication Oil / Product lubrication
Max. permissible fluid temperature 70 °C
Nozzle position In- line
Number of pumps 4
Maximum rated pressure (discharge) PN 16
Pump set location Dry installed
Suction characteristics Non- priming
Suitable for drinking water Yes
Type of connection Screw- ended, flange
Type of stage casing Stage casing with diffuser
UNSPSC classification 4015150300
Casing material (EN standard) 1. 4301
eClass assignment 36410101
Maximum head 160, 00 m
Minimum head 6, 00 m
Maximum inlet pressure 10 bar
Installation position Vertical
Shaft seal type Mechanical seal
Main applications Industry and process engineering; Water;Building services
Casing material Chrome nickel steel
Maximum discharge-side pressure 16 bar
Maximum drive rating 7, 50 kW
Type of installation Stationary
Maximum flow rate 660 m³/h
Maximum speed of rotation 2. 900 1/min
Standby pump Yes
Type of connection Indirect and direct



EBARA            GRUNDFOS           KSB          WILO        TSURUMI

Wilo-Multivert MVI 32/52/70/95







Wilo-Multivert MVI 32/52/70/95

Wilo-MVI-modulDesign

Non-self-priming multistage pump

Application

  • Water supply and pressure boosting
  • Fire extinguishing systems
  • Boiler feed
  • Industrial circulation systems
  • Process engineering
  • Cooling water circulation systems
  • Washing and sprinkling systems

Special features / product benefits

  • All parts that come in contact with the fluid are corrosion-resistant
  • Materials: Stainless steel 1.4301 (MVI 32/52 also 1.4404), pump housing EN-GJL-250 cataphoretic-coated (MVI 32/52 also 1.4408)
  • EPDM seals.
  • All relevant components are KTW- and WRAS-certified
  • IE2 IEC standard motor, 3-phase, 2-pole

Technical data

  • Wilo-Multivert-MVI)Mains connection 3~230 V  (±10 %), 50 Hz (Δ) or optionally 220 V  (±10 %), 60 Hz (Δ) up to 4.0 kW, 400 V  (±10 %), 50 Hz (Y) or optionally 380 V  (±10 %), 60 Hz (Y) or 460 V  (±10 %), 60 Hz (Y) from 4.0 kW
  • Fluid temperature ‐15 to +120 °C
  • Max. operating pressure 16/25 bar
  • Max. inlet pressure 10 bar
  • Protection class IP 55
  • Flange connection PN 16/PN 25: Round flange (MVI 32, = DN65; MVI 52 = DN80; MVI 70/95 = DN100)





EBARA            GRUNDFOS           KSB          WILO        TSURUMI



Wilo - VeroLine-IPS





Wilo – VeroLine-IPS

Wilo-Veroline-IPs (1)Design

Glanded pump in in-line design with threaded connection or flange connection

Application

For pumping cold and hot water (in accordance with VDI 2035) without abrasive substances in heating, cold water and cooling water systems

Special features / product benefits

  • Worldwide availability of the standard motors used
  • Bidirectional mechanical seal with forced flushing

Technical data

  • Permissible temperature range ‐10°C to +140°C
  • Mains connection 3~230 V, 3~400 V, 50 Hz
  • Protection class IP 55
  • Nominal diameter Rp 1 and DN 40
  • Max. operating pressure, 10 bar or 6 bar for flange connection

ype key

  • Example IPS 40 GRD
  • IPS In-line pump
  • 40 Nominal diameter DN of the pipe connection
  • GRD Mechanical seal

Special features/product advantages

  • Worldwide availability of the standard motors used
  • Bidirectional mechanical seal with forced flushing

Description/design

  • Single-stage, low-pressure centrifugal pump in in-line design with
  • Mechanical seal or stuffing box
  • Threaded or flange connection with pressure measuring connection R 1/8
  • Standard motor

Materials

  • Pump housing and lantern: EN‐GJL‐200
  • Impeller: Plastic
  • Shaft: 1.4021
  • Mechanical seal: BVEGG; other mechanical seals on request

Scope of delivery

  • Pump
  • Installation and operating instructions





EBARA            GRUNDFOS           KSB          WILO        TSURUMI



Pages:12Next »
