Industrial Processes

Industrial Processes

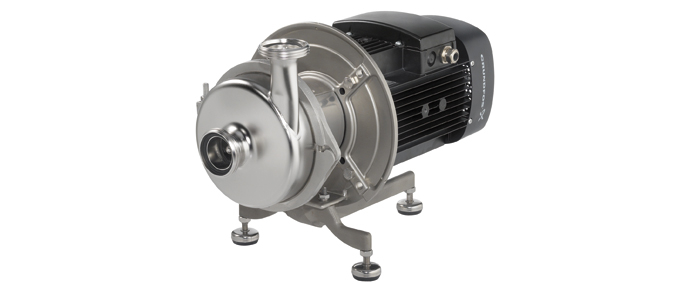

Wilo-JP series-Centrifugal Sanitary Pumps

Product Introduction

Wilo-JP series-Centrifugal Sanitary Pumps in all sectors of beverage and food processing industries,

JP series, special feature with unique spiral-shaped casing and the double curved impeller design for high efficiencyhave proven successfully by absolute reliability such as low energy consumption,

perfect CIP and low noise level.



Features / Benefits

Wilo-JP-DIMIdeal for hygienic application of dairy, food, beverage,
pharmaceutical and other industries
Unique spiral-shaped casing for high efficiency
Designed for either CIP or easy manual cleaning
Low NPSH requirement, power consumption, noise level
Up to 100m³/hr flow rate, 80m head
SS316L for all wetted parts & EPDM standard
Single seal standard & easy change to double seal

Wilo-JP-Curves



























Wilo-JP-Material











































EBARA              GRUNDFOS              KSB             WILO           TSURUMI

EBARA-3-3L SERIES Centrifugal pumps close coupled and standardized

EBARA-3-3L SERIES

Centrifugal pumps close coupled and standardized

Ebara-3-Series

CENTRIFUGAL ELECTRIC PUMPS END SUCTION IN COMPLIANCE WITH EN 733
(FORMER DIN 24255)
End suction centrifugal pumps built in stainless steel AISI 304
(3 Series) and AISI 316L (3L Series)


APPLICATIONS

• Water supply to civil, agricultural and industrial plants
• Pressure boosting
• Fire-fighting, heating systems and air-conditioning
• Moving industrial liquids
• Irrigation
• Refrigeration towers
• Swimming pools
• Emptying
• Washing plants


TECHNICAL DETAILS

Ebara-3-Series-contruction• Can also work in vertical position
• Highly resistant contruction
• Hydroforming process EBARA patent

PUMP TECHNICAL DATA

• Maximum working pressure: 10 bar
• Maximum temperature of the liquid:
-10°C ÷ +90°C
-10°C ÷ +110°C (L-H-HS-HW-HSW-E versions)
-10°C ÷ +120°C (ES version)
• MEI >0,4 for SERIES 3(L) 2 poles, MEI >0,1 for SERIES 3(L) 4 poles
For further information please see our Data Book

MOTOR TECHNICAL DATA

• High efficiency IE2 motors starting from 0,75kW
• Self-ventilated 2 and 4 poles asynchronous motor
• Class of insulation F (B for high temperatures)
• IP 55 protection degree
• 230V ±10%, 50Hz single phase voltage,
three phase voltage 220-240/380-415V ± 5% (up to 0,55kW included), 50Hz for 3(L)M4 SERIES,
three phase voltage 230/400V ±10% (from 0,75kW to 4kW included), 50Hz for 3(L)M4 SERIES,
three phase voltage 230/400V ±10% (up to 4kW included), 50Hz for the other models
three phase voltage 400/690V ±10% (from 5,5kW and over), 50Hz
• Protection is user’s responsibility

MATERIALS

Ebara-3-Series-contruction1 copy• Pump casing and seal housing disc:
– AISI 304 per 3 Series 32-125/160/200
40-125/160/200
50-125/160
65-125/160/200
– AISI 316L for 3L Serie 32-125/160/200
40-125/160/200
50-125/160
65-125/160/200
– AISI 316 microcasted for 3L Series 65-250
80-160/200/250
• Impeller in:
– AISI 304 for 3 Series 32-125/160/200
40-125/160/200
50-125/160
– AISI 316L for 3L Series 32-125/160/200
40-125/160/200
50-125/160
– AISI 316 microcasted for 3 SERIES 65-125/160/200
3L SERIES 65-125/160/200
65-250
80-160/200/250
• Standard mechanical seal:
– Carbon/Ceramic/NBR for 3 Series 32-125/160/200
40-125/160/200
50-125/160
65-125/160/200
– SiC/SiC/FPM for 3L Series 32-125/160/200
40-125/160/200
50-125/160
65-125/160/200/250
80-160/200/250
– Special mechanical available on request

EBARA               GRUNDFOS              KSB              WILO          TSURUMI

Tsurumi - SFQ Series Corrosion resistant pumps







Tsurumi – SFQ Series





Tsurumi corrosion resistant pumps are available in 316 or 304 stainless steel (SFQ Series, SQ Series) as well as titanium (TM Series). Featuring semi-vortex, vortex, and semi-open impellers, our solidly engineered pumps can endure the corrosive forces of your toughest applications



Dimensions in mm:

Tsurumi-SQF



Stainless steel pump – The SFQ pump has been developed exclusively for corrosive liquids. Applying austenitic steel in all wetted parts, the SFQ pump is a highly specialised pump in terms of design and materials



Performance curves

K40_1_1



















Material

ø Discharge bore mm 50mm, 80mm
Pumping Fluid Temperature 0-40°C
Type of Fluid Aggressive sewage
Pump Compo- nents Impeller Open type impeller
Shaft Seal Double mechanical seal
Bearings Shielded ball bearings
Material Impeller Stainless steel casting DIN GX5CrNiMo19-11-2
Casing Stainless steel casting DIN GX5CrNiMo19-11-2
Suction Plate Stainless steel casting DIN GX5CrNiMo19-11-2
Shaft Seal Silicon carbide in oil bath
Motor Type, Poles Induction motor, 2 poles, IP68
Lubrication Turbine oil (ISO VG32)
Insulation Insulation class E, Insulation class F
Motor Protector (built-in) Circle thermal cut-out
Phase / Voltage 3-phase / 400V / 50Hz / d.o.l., 3-phase / 400V / 50Hz / s.d.
Material Casing Stainless steel casting DIN GX5CrNiMo19-11-2
Shaft Stainless steel EN-X5CrNiMo17-12-2
Cable Rubber, 10m H07RN-F
Discharge Connection Inside thread, JIS10K flange

Dimensions – guide rail fitting type in mm

Tsurumi-SQF-diam







































EBARA            GRUNDFOS             KSB            WILO           TSURUMI



KSB - Etanorm GPV / CPV Single-stage volute casing pump,for vertical installation in closed tanks under atmospheric pressure

Design

KSB – Etanorm GPV / CPV
Single-stage volute casing pump, ratings to EN 733, for vertical installation in closed tanks under atmospheric pressure. Up to an immersion depth of 2000 mm.



Applications

Handling of neutral degreasing and phosphatizing solutions, wash water with degreasing agents, dipping paints, etc.



 KSB-Etanorm GPV-W-CPV-W-modularSectional drawing

1 Motor housing 2, 3 Rolling element bearings
4 Motor stool 5 Cover plate
6 Shaft 7 Overflow opening
8 Intermediate pipe 9 Shaft passage
10 Casing cover 11 Impeller
12 Suction nozzle 13 Discharge nozzle
14 Riser 15 Volute casing
16 Clearance gap























To transport the pump/pump set suspend it from the lifting tackle as shown below.

KSB-Etanorm GPV-W-CPV-W.dia







Fig. 1: Transporting the pump set without/with cover plate up to motor size 160



KSB-Etanorm GPV-W-CPV-W-hor



Fig. 2: Transporting the pump set without/with cover plate up to motor size 160 for
larger installation depths



Overview of technical data

Type of bearing Rolling element bearings
Casing partition Radially split
Drive frequency 50 Hz / 60 Hz
Type of drive Electric motor
Drive voltage Low voltage
No. of impeller entries Single entry
Maximum submergence 535 mm
Impeller material (EN standard) 1. 4408;JL 1040
Type of coupling Direct
Type of lubrication Grease lubrication
Max. permissible fluid temperature 70 °C
Nozzle position Variable
Maximum rated pressure (discharge) PN 10; PN 16
Pump set location Wet well
Shaft material (EN standard) 1. 4462;C45+N
Standard EN 733
Suction characteristics Non- priming
Top plate Yes
Type of casing Volute casing
Type of impeller Radial; Closed
Type of connection Flange
Casing material (EN standard) 1. 4408;JL 1040
eClass assignment 36410101; 03641000;36410100
Maximum head 100, 00 m
Minimum head 1, 50 m
Installation position Vertical
Shaft seal type Shaft seal ring
Main applications Industry and process engineering; Waste water / sewage
Casing material Cast iron; Stainless steel
Maximum discharge-side pressure 10 bar
Maximum drive rating 90 kW
Type of installation Stationary
Maximum flow rate 750 m³/h
Minimum flow rate 3 m³/h
Maximum speed of rotation 3. 500 1/min





EBARA            GRUNDFOS             KSB            WILO           TSURUMI

Wilo - Series NFCH For pumping mineral or synthetic



Design

Wilo – Series NFCH

Single-stage low-pressure centrifugal
pump mounted on a baseplate

Wilo NFCH-Dia

Application

For pumping mineral or synthetic
heat carrying fluids up to 350 °C, e.g.:
in industrial processes or for power
generation

Q max.

1,000 m³/h
H max.
90 m



Technical data

• Permissible temperature range up to
Wilo NFCH-diag+350 °C, dependent on max. operating
pressure:
0 °C … 120 °C (16 bar)
120 °C … 300 °C (13 bar)
300 °C … 350 °C (16 bar)
• Nominal diameter on pressure side
DN 32 to DN 125
• Max. operating pressure PN 16







Equipment/function

• Single-stage, horizontal centrifugal
pump with axial suction connection and
radial pressure upwards-facing pressure
connection
• Dimensions and hydraulic output as
per EN 733
• Self-cooling design with double
temperature barrier allows the use of an
uncooled shaft seal, reducing heat loss.
• Standard mechanical seal corresponding
to heat carrier medium
• Version with or without spacer coupling
• 2 or 4-pole IEC standard motor 50 Hz
• Delivered as complete unit (pump,
coupling, coupling protection, motor
and baseplate) or without motor or only
pump with free shaft end



Special features

Impeller diameter is adjusted to the
dutypoint as appropriate
• 60 Hz or ATEX version on request



EBARA            GRUNDFOS             KSB            WILO           TSURUMI

KSB Amacan K - Submersible motor pump with non-clogging impeller





Design

KSB-Amacan K-ModularKSB Amacan K – Wet-installed submersible motor pump with non-clogging impeller, singlestage, single-entry, for installation in discharge tubes, explosion protection to ATEX II G2 T3.



















Applications

Handling of pre-cleaned, chemically neutral waste water, industrial effluents and sewage, fluids not containing any stringy substances pre-treated by screens and sills, as waste water, mixed water and activated sludge pump in effluent treatment plants, irrigation and drainage pumping systems.

Function

KSB-Amacan K-instThe fluid enters the pump axially via the inlet of the pump casing (1) and is
accelerated outward in a radial flow by the rotating impeller (2). The required energy
is transmitted from the electric motor (7) to the impeller (2) via the shaft (4). In the
pump casing (11) the kinetic energy of the fluid is converted into pressure energy.
The rotational movement diverts the fluid flow in axial direction. The casing wear
ring (12) prevents any fluid from flowing back from the casing into the inlet of the
pump casing. At the rear side of the impeller, the shaft enters the casing via the
discharge cover (3). The shaft passage through the discharge cover is sealed towards
the fluid by a shaft seal (10). The shaft runs in rolling element bearings (5 and 8),
which are supported by a bearing housing (9) and a bearing bracket (6).





Standard

KSB-Amacan K-Diagram Temperature monitoring of the motor
▪ Temperature monitoring at the lower bearing
▪ Leakage monitoring of the mechanical seal system
▪ Leakage sensors in the motor/connection space









 Flamepaths for explosion-proof motors

KSB-Amacan K-Explosion proof





















Overview of technical data

Type of bearing Rolling element bearings
Casing partition Radially split
Drive Electric motor
Drive frequency 50 Hz / 60 Hz
Type of drive Electric motor
Drive voltage Low voltage
Connection to power supply 380 V, 400 V, 690 V, 3~
Explosion protection ATEX II 2G T3
No. of impeller entries Single entry
Impeller material (EN standard) 9. 4460;JL 1040
Type of installation Close- coupled
Type of coupling None
Type of lubrication Grease lubrication
Max. permissible fluid temperature 40 °C
Nozzle position In- line
Pump set location Wet well
Shaft material (EN standard) 1. 4021QT700;C45+N;1.4057
Suction characteristics Non- priming
Type of casing Tubular casing
Type of impeller Multi- vane impeller;Radial;Closed
Casing material (EN standard) JL 1040
eClass assignment 36410103; 36410100;36410000
Free passage 180 mm
Maximum head 30, 00 m
Minimum head 1, 00 m
Installation position Vertical
Shaft seal type Mechanical seal
Main applications Water; Waste water / sewage;Mining / Dredges
Casing material Cast iron
Maximum drive rating 320 kW
Type of installation Stationary
Maximum flow rate 7. 200 m³/h
Minimum flow rate 140 m³/h
Maximum speed of rotation 1. 200 1/min



EBARA              GRUNDFOS               KSB              WILO             TSURUMI

Wilo-EMU 6" For potable water supply / general water supply from boreholes and rainwater storage





Design

Wilo Emu 6″ Submersible pump in sectional construction

Wilo-EMU_6-Vic

Description/design

Submersible-motor pump for vertical or horizontal installation.



Hydraulics

Multistage submersible-motor pump with radial hydraulics. Housing parts made of NiAl‐Bz, impellers made of Noryl. Pressure connection as threaded connection, with integrated non-return valve.



Motor

Three-phase motor for direct and star-delta start Sealed, hermetically cast motor with enamel-insulated winding, resin-impregnated (NU 4…, NU 5…) or rewindable motor with PVC‐insulated winding (NU 611). Motor shroud made of stainless steel, A2/A4 quality.

Pump connection as standard NEMA connection. Sealing of motor shaft achieved through the use of a rotary shaft seal (NU 4…) or mechanical seal made of solid silicon carbide material.

Self-lubricating motor bearing. Motors in the NU 4…- and NU 5… series are filled with a water‐glycol mixture, motors in the NU 611 series are filled with a water-glycerine mixture. Alternatively, NU 611… series motors can be filled with potable water (T‐version). Frequency converter operation is permitted (SF 1.1).



Cooling

The motor is cooled by the fluid. The motor must always be operated in submerged state. The limit values for the max. fluid temperature and the minimum flow rate must not be exceeded. Vertical installation is possible optionally with or without cooling jacket. For horizontal installation, bearing brackets must be used for reinforcement of the unit. A cooling jacket may be used to improve the inlet flow.



Pressure shroud

The pressure shroud is used for direct installation of the unit in the pipe system. Standard models are without mounted non-return valves. The maximum inlet pressure is 10 bar.



Application

  • Wilo-EMU_6-AppupFor potable water supply / general water supply from boreholes and rainwater storage
  • Process water supply
  • Municipal water supply
  • Sprinkling and irrigation
  • Pressure boosting
  • Pumping water in industrial applications and water control
  • Operation of fountains
  • For pumping water without long-fibre and abrasive constituents











Type key

Example: Wilo-EMU NK 63-17 + NU 611-2/15
Hydraulics: NK 63-17
NK Hydraulics
6 Diameter of the hydraulic unit in inches [“]
3 Size
17 Number of hydraulic stages
Motor: NU 611-2/15
NU Submersible motor
611 Size (4… = 4″, 5…, 611 = 6″)
2 Number of poles
15 nominal power



Special features/product advantages

  • Wilo-EMU_6-AppPumping water from great depths
  • Corrosion-free and wear-resistant due to housing made of NiAl‐Bz and impellers made of Noryl
  • Integrated non-return valve
  • Cast and rewindable motors
  • Vertical and horizontal installation possible (depending on the number of stages)



Technical data

  • Mains connection: 3~400 V, 50 Hz
  • Immersed operating mode: S1
  • Max. fluid temperature: 30 °C, higher temperatures on request
  • Minimum motor flow:
    • NU 4… = 0.1 m/s
    • NU 5… = 0.16 m/s
    • NU 6… = 0.1 ‐ 0.5 m/s
  • Max. sand content: 35 g/m3
  • Max. number of starts: 20/h
  • Max. immersion depth:
    • NU 4…, NU 5…= 350 m
    • NU 611 = 100 m
  • MEI classification:
    • NK 62 = >0.4
    • NK 63 = >0.7
    • NK 64 = >0.1
  • Protection class: IP 68
  • Control range for frequency converter: 30-50 Hz



Equipment/function

  • Wilo-EMU_6-Curve
  • Multistage submersible-motor pump with radial impellers
  • Hydraulics and motor freely configurable according to power requirements
  • Integrated non-return valve
  • NEMA coupling
  • Three-phase motor for direct or star-delta starting
  • Hermetically cast motors
  • Rewindable motors





EBARA            GRUNDFOS             KSB            WILO           TSURUMI

KSB-Etaseco Seal-less volute casing pump in back pull-out design with fully





Design

KSB-Etaseco Horizontal / vertical, seal-less volute casing pump in back pull-out design with fully enclosed canned motor

KSB-etaseco-mudular copyLow noise emission, with radial impeller, singlestage, single-entry, pump casing connecting dimensions to EN 733.








Applications

Handling of aggressive, flammable, toxic, volatile, or valuable liquids in the chemical and petrochemical industry, in environmental engineering and the general industry.



Drive

KSB-Etaseco-CurvesThree-phase, asynchronous canned motor, enclosure IP 55,
without explosionproof status. Thermal motor protection by
means of PTC thermistors. The motor design is in accordance
with IEC 60 034 (DIN VDE 0530).











Overview of technical data

Type of bearing Plain bearings
Casing partition Radially split
Drive IEC standardized motor
Drive frequency 50 Hz / 60 Hz
Type of drive Electric motor
Drive voltage Low voltage
Connection to power supply 220/ 400/690 V, 3~
No. of impeller entries Single entry
Impeller material (EN standard) JL1040; JS1025
Type of installation Close- coupled
Type of coupling Direct
Type of lubrication Oil / Product lubrication
Max. permissible fluid temperature 140 °C
Nozzle position End suction
Maximum rated pressure (discharge) PN 16
Pull-out design Yes
Pump set location Dry installed
Shaft material (EN standard) 1. 4021
Suction characteristics Non- priming
Type of casing Volute casing
Type of impeller Multi- vane impeller;Closed;Closed / Radial;Radial
Type of connection Flange
Casing material (EN standard) JS1025; JL1040
eClass assignment 36410100; 36410101;36410000
Maximum head 100, 00 m
Minimum head 9, 00 m
Installation position Horizontal or vertical
Shaft seal type Canned motor pump
Main applications Industry and process engineering
Casing material Cast iron; Nodular cast iron
Maximum discharge-side pressure 16 bar
Maximum drive rating 18 kW
Type of installation Stationary
Maximum flow rate 250 m³/h
Minimum flow rate 3 m³/h
Maximum speed of rotation 3. 500 1/min



EBARA            GRUNDFOS             KSB            WILO           TSURUMI

WILO-CP 80-150W Submersible Contractor pump raised suction strainer and Inox design.



WILO-CP 80-150W – Submersible Contractor pump

Design

Wilo-CP_80-150W_curveSubmersible Contractor pump with top discharge; raised suction strainer and Inox design.









Application

  • civil engineering, drainage of tunnels and excavation pits
  • dewatering of fluids containing solid sediments
  • mobile use for contractors in service industries



Special features / product benefits

  • double housing water-cooled motor for flat suction
  • light weight
  • high quality silicon carbide double mechanical seal
  • high-efficient and wear-resistant HCR (high chrome) impeller
  • integrated motor control for current overload and high temperature



Technical data

  • discharge diameter DN80~ DN150
  • solid passage 10 mm
  • motor power 1.5kW~7.5kW; 2pole
  • 1~230V and 3~400V



EBARA            GRUNDFOS            KSB            WILO          TSURUMI

KSB - HGM-RO High-pressure pumps for reverse osmosis systems





KSB-HGM-RO high-pressure pump – reliable drinking water treatment in reverse osmosis systems

KSB_HGM_RO-modular



Drinking water production in RO systems requires a high-pressure pump of top reliability which provides continuously economical operation. KSB responds to this need with an ideal solution: the HGM-RO high-pressure pump.













High-pressure pumps  HGM-RO High-pressure pumps for reverse osmosis systems need to be able to handle the harsh conditions which prevail in seawater desalination plants.

KSB-HGM-RO-Curves



KSB has opted for radially split high-pressure pumps.

Their radially split design makes HGM-RO high-pressure pumps particularly robust, enabling them to cope with the extreme conditions of drinking water treatment in seawater desalination.







Benefits of using KSB’s radially split high-pressure pumps in reverse osmosis systems:

HGM-RO-Radially-split-designMinimum energy input, low operating costs

Excellent NPSH value thanks to axial inflow with suction stage impeller. Continuously high efficiencies.



Compact design

Internal, product-lubricated plain bearings with a short bearing span ensure smooth running and therefore high pump availability and reliability as well as a long service life of wear parts.



Corrosion-resistant design

The HGM-RO high-pressure pump is made of duplex or super duplex stainless steels. Its corrosion-resistant design (e.g. dry shaft) translates into a long service life.

KSB-HGM-RO-01k

Low monitoring requirements

There is no need for an additional lubrication system, and the pump does not require any vibration or bearing temperature monitoring. This saves both initial and operating costs for the pump set.

Minimum maintenance costs

Because of its axial inlet, the HGM-RO high-pressure pump has just one mechanical seal, which minimises spare parts costs. The ring section design ensures top reliability in the extreme conditions of reverse osmosis systems. No lubrication systems are required. The mechanical seal is easy to replace.

Reduced construction costs

The pump’s compact design, low weight and smooth running lower the requirements to be met by the foundation. Flexible connection branches facilitate connection to the system piping.



Easier to install and dismantle than axially split pumps

The pump can be dismantled and reassembled from either side. The wear parts are easily accessible.



EBARA            GRUNDFOS            KSB            WILO          TSURUMI

Pages:12345678Next »
