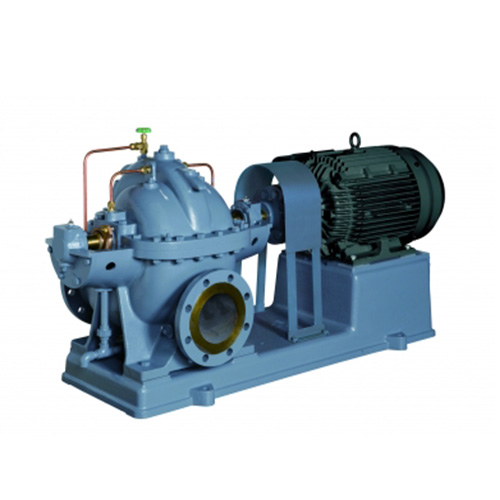

Ebara Horizontal Double Suction Volute Pump CN 200-500 MM

Split case design permits easy disassembly, that is; inspection is simplified, it is not necessary to disturb pump alignment and suction & discharge piping when parts replacement is necessary.
Double suction with advanced design of suction performance ensures high suction lifts even with large capacities. Compared with conventional double suction design, with the possibility of using a high speed motor, such system and related facilities can be installed in a small area.
Higher operating efficiency over a wide range of capacities lower operation cost and smaller motor output are all possible.
Pump operation with low noise, smaller pressure pulsation ensure comfortable environment.
Variable combinations of materials permit wide application.

Description

Description

Application

BUILDING: Water supply, Drainage, Water circulation, Fire fighting
IRRIGATION: Water supply, Drainage
WATERWORKS: Water intake, Booster, Water supply
OTHER CHEMICAL INDUSTRIES: Water intake, Booster, Circulation, Drainage, Chemical

Specification

Selection Chart

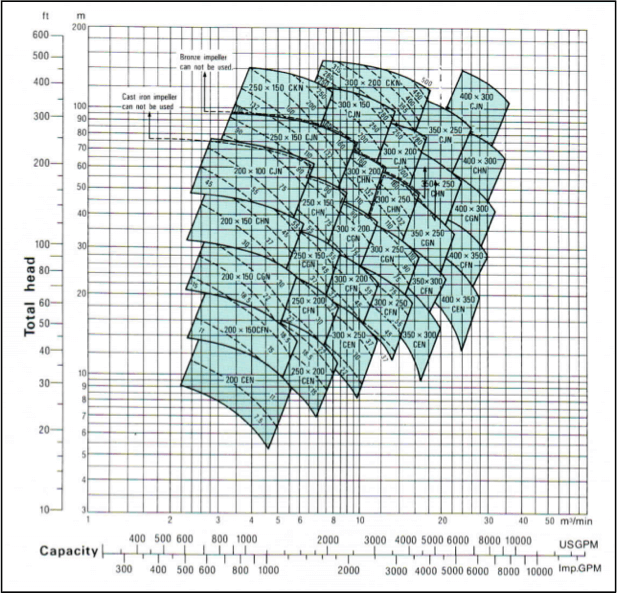

4 Pole, 50 Hz [Synchronous speed 1500 min-1]

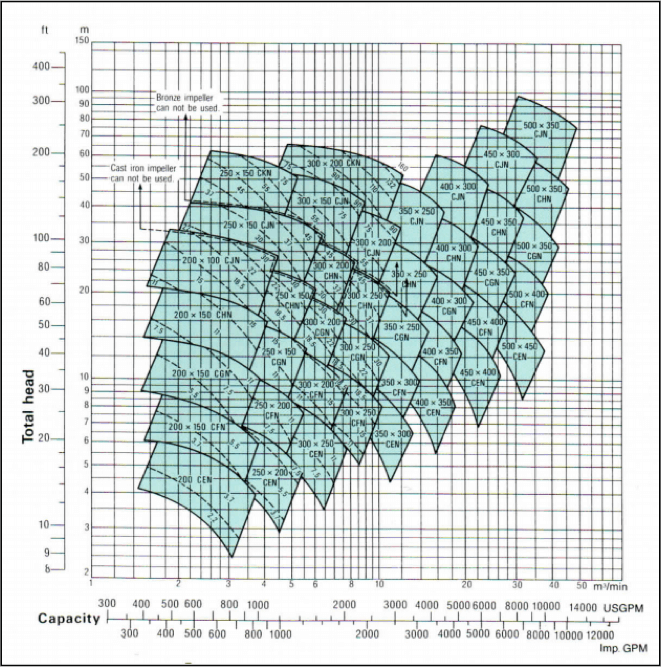

6 Pole, 50 Hz [Synchronous speed 1000 min-1]
