Ebara Mobile Trailer Pump EITP-3

Avaiability: In Stock

Features

  • High Efficiency
  • Low Cost Operation
  • Easy and quick operation
  • Non Clogging
  • Easy Maintenance

Application

  • Flood Water Control
  • Drainage

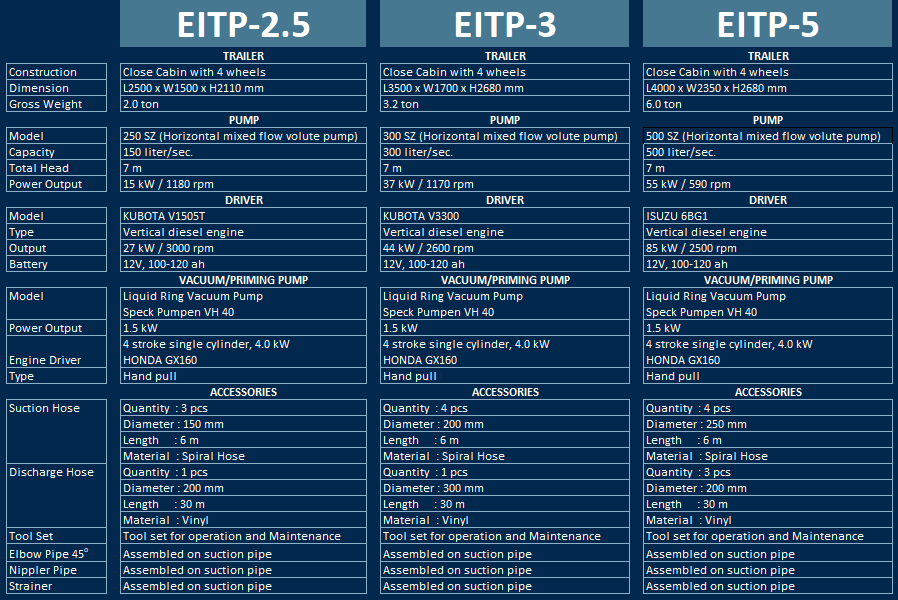

Specification

1. Handle Liquid : River Water or Flood Water
2. Material
3. Pump Casing : Cast Iron
Impeler : Bronze
Shaft : Carbon Steel
Seal : Gland Packing
4. Dia. Suction : 12″ (300 mm) with Header 4 x 6″ (150 mm)
5. Dia. Discharge : 8″ (200 mm)
6. Capacity : 200 L/sec (12 m3/min)
7. Total Head : 7 m
8. Pump Rotation : 980 min-1
9. Shaft power : 22 kW (30 HP)
10. Engine : Diesel Vertical Cylinder, 4 stroke with water cooler radiator
11. Output Net. : 50 HP/2800 min-1
12. Control Panel : Starter key
Hour meter
Oil pressure lamp
Water temperature lamp.
13. Fuel tank Cap. : 35 liter
14. Silencer : Galvanize plate
15. Accu : 12 V – 135 Amp
16. Vacuum pump : Multistage pump driven by gasoline engine, engine power 5.5 HP
17. Trailer : 2 Axis 4 wheels
Closed cabin
18. Dimension : (3500 x 1700 x 2685) mm

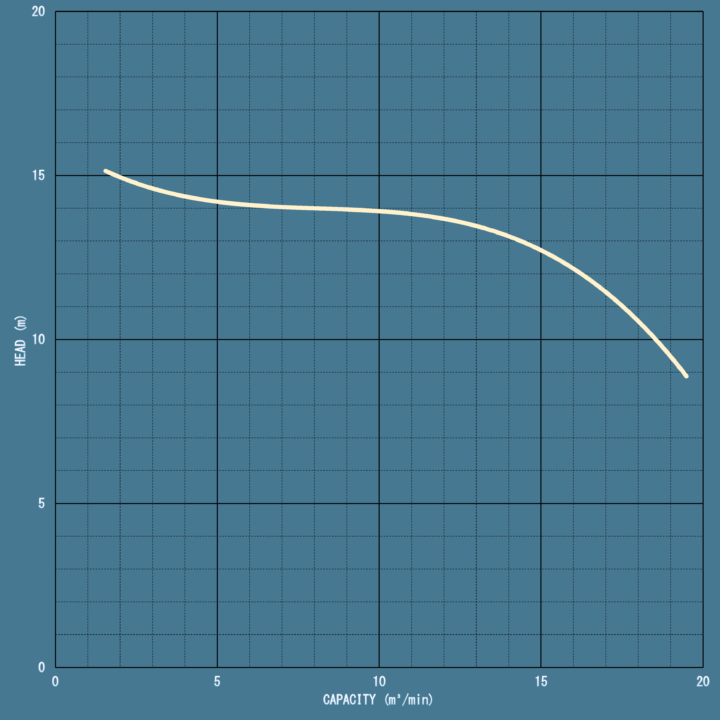

Selection Chart
