Description
SDR11
SDR17
- PN5.5
- GIS/PL3
- PE X 001 – Screwed end 11/2″ and 2″
- PE x 002 – Plain end 3″ and above
- d40 – 180

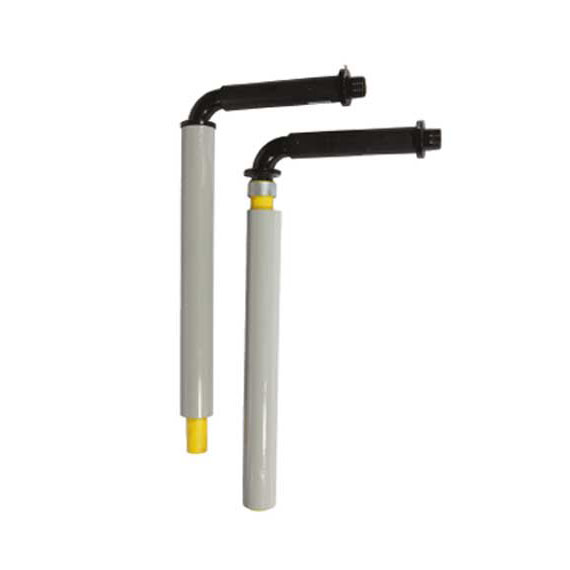

The Donkin Series 217 factory entry elbows are transition fittings that connect PE service pipes via a crimp connection to a 90° steel elbow enabling gas to be conveyed through the wall cavity in a building and connect on to an internal gas meter or interior pipe-work.
The range consists of options from 40mm PE x 1.5″ steel up to 180mm PE x 6″, with different lengths of pipe to suit different wall cavity thicknesses and different lengths PE spigots.
