Description

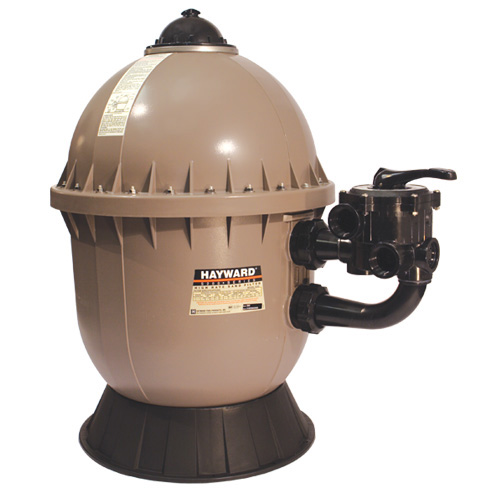

The S200 filter combines high-rate filtration performance with the durability of a corrosion proof, heavy duty, injection molded tank.
- Durable 6” threaded inspection cover provides convenient access to top of filter
- Corrosion-proof, heavy-duty filter tank injection molded of tough, durable ABS for dependable, all-weather performance
- Large pressure sand/water drain for rapid winterizing or servicing
- Extra strength, bolted center flange securely fastens tank and allows for maximum access to all internal components
- 6-position Hayward VariFlo control valve with easy-to-use lever-action
- Integral sight glass lets you see when backwash cycle is completed
- Precision engineered umbrella-fold self-cleaning laterals for balanced flow and backwashing, and easy serviceability.
Technical Specifications
| Model | Valve | Sand Required | Dimen. Width | Dimen. Height |
|---|---|---|---|---|
| S200 | 1 1/2″ Vari-Flo | 200 lbs. | 23 1/2″ | 37″ |
Performance Data – Filter
| Model | Effective Filtration Area | Design Flow Rate | Turnover 8 Hrs (Gal) | Turnover 10 Hrs (Gal) |
|---|---|---|---|---|
| S200 | 2.20 ft.2 | 44 GPM | 21,120 | 26,400 |
Applications
- In-ground pools of all types and sizes
- In-ground spas (residential or commercial)
- Water features (fish ponds, fountains, water gardens)
