Product Description

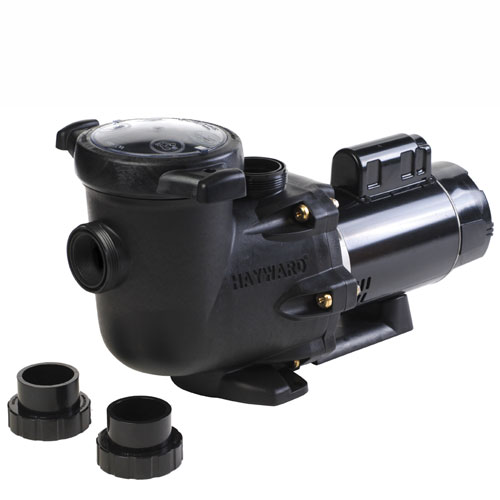

TriStar® is the most hydraulically efficient pool pump, providing superior flow and energy efficiency. The wide range of TriStar pumps are the perfect fit for a variety of pump installations.
Features:
- Superior hydraulic efficiency allows the pump to deliver the performance of larger, more expensive pumps
- Available in single or two speed models with a selection of voltage and horsepower options
- Two-speed models are ENERGY STAR Certified; may be eligible for local utility rebates
- Quick and easy installation and servicing with 2” x 2.5” union connections, providing optimum efficiency for medium to larger pools.
- No-rib, extra- large basket design ensures easy leaf and debris removal and extends time between cleanings
Technical Specifications
| Model | Total H.P. | Rated H.P. | Service Factor | Voltage | Union Connectors | Dim. “A” |
|---|---|---|---|---|---|---|
| SP3205EE | .99 | 1/2 | 1.98 | 115/208-230 | 2″ x 2 1/2″ | 13 5/8″ |
| SP3207EE | 1.39 | 3/4 | 1.85 | 115/208-230 | 2″ x 2 1/2″ | 13 7/8″ |
| SP3210EE | 1.85 | 1 | 1.85 | 115/208-230 | 2″ x 2 1/2″ | 14 3/8″ |
| SP3215EE | 2.40 | 1 1/2 | 1.60 | 115/208-230 | 2″ x 2 1/2″ | 14 7/8″ |
| SP3220EE | 2.70 | 2 | 1.35 | 208-230 | 2″ x 2 1/2″ | 14 7/8″ |
| SP323063EE | 3.60 | 3 | 1.20 | 208-230/460 | 2″ x 2 1/2″ | 17 1/8″ |
| SP3230EE | 3.60 | 3 | 1.20 | 208-230 | 2″ x 2 1/2″ | 17 1/8″ |
| SP3250EE | 5.0 | 5 | 1.00 | 208-230 | 2″ x 2 1/2″ | 17 1/8″ |
| Model | Total H.P. | Rated H.P. | Service Factor | Voltage | Union Connectors | Dim. “A” |
|---|---|---|---|---|---|---|
| SP32102EE | 1.85 | 1 | 1.85 | 208-230 | 2″ x 2 1/2″ | 14 3/8″ |
| SP32152EE | 2.40 | 1 1/2 | 1.60 | 208-230 | 2″ x 2 1/2″ | 14 7/8″ |
| SP32202EE | 2.70 | 2 | 1.35 | 208-230 | 2″ x 2 1/2″ | 14 7/8″ |
| Model | Total H.P. | Rated H.P. | Service Factor | Voltage | Pipe Size | Dim. “A” |
|---|---|---|---|---|---|---|
| SP3207X10 | 1.25 | 1 | 1.25 | 115/230 | 2″ x 2 1/2″ | 13 7/8″ |
| SP3210X15 | 1.65 | 1 1/2 | 1.10 | 115/230 | 2″ x 2 1/2″ | 13 7/8″ |
| SP3215X20 | 2.20 | 2 | 1.10 | 115/230 | 2″ x 2 1/2″ | 15 1/8″ |
| SP3220X25 | 2.60 | 2 1/2 | 1.04 | 230 | 2″ x 2 1/2″ | 14 7/8″ |
| SP3225X30 | 3.45 | 3 | 1.15 | 230 | 2″ x 2 1/2″ | 15 5/8″ |
| Model | Total H.P. | Rated H.P. | Service Factor | Voltage | Union Connectors | Dim. “A” |
|---|---|---|---|---|---|---|
| SP3210X152 | 1.85 | 1 1/2 | 1.23 | 208-230 | 2″ x 2 1/2″ | 14 3/8″ |
| SP3215X202 | 2.40 | 2 | 1.20 | 208-230 | 2″ x 2 1/2″ | 14 7/8″ |
| SP3220X252 | 2.70 | 2 1/2 | 1.08 | 208-230 | 2″ x 2 1/2″ | 14 7/8″ |
Performance – Energy Efficient Full Rated & Standard Efficient Max Rated
| Model | 20 ft | 30 ft | 40 ft | 50 ft | 60 ft | 70 ft | 80 ft | 90 ft | 100 ft |
|---|---|---|---|---|---|---|---|---|---|
| SP3205EE | 87 GPM | 76 GPM | 62 GPM | 44 GPM | 14 GPM | – | – | – | – |
| SP3207EE | 104 GPM | 95 GPM | 85 GPM | 71 GPM | 53 GPM | 23 GPM | – | – | – |
| SP3207X10 | 104 GPM | 95 GPM | 85 GPM | 71 GPM | 53 GPM | 26 GPM | – | – | – |
| SP3210EE | 131 GPM | 122 GPM | 110 GPM | 97 GPM | 82 GPM | 60 GPM | 16 GPM | – | – |
| SP3210X15 | 131 GPM | 122 GPM | 110 GPM | 97 GPM | 82 GPM | 60 GPM | 16 GPM | – | – |
| SP3215EE | 150 GPM | 148 GPM | 140 GPM | 126 GPM | 112 GPM | 94 GPM | 70 GPM | – | – |
| SP3215X20 | 150 GPM | 148 GPM | 140 GPM | 126 GPM | 112 GPM | 94 GPM | 70 GPM | – | – |
| SP3220EE | 170 GPM | 170 GPM | 162 GPM | 148 GPM | 130 GPM | 110 GPM | 80 GPM | 26 GPM | – |
| SP3220X25 | 162 GPM | 162 GPM | 150 GPM | 134 GPM | 116 GPM | 97 GPM | 55 GPM | – | – |
| SP3225X30 | 190 GPM | 190 GPM | 186 GPM | 174 GPM | 155 GPM | 138 GPM | 114 GPM | 72 GPM | – |
| SP3230EE | 190 GPM | 190 GPM | 186 GPM | 174 GPM | 155 GPM | 138 GPM | 114 GPM | 72 GPM | – |
| SP3250EE | 200 GPM | 200 GPM | 200 GPM | 193 GPM | 182 GPM | 167 GPM | 150 GPM | 126 GPM | 75 GPM |
Performance Data – Low Speed
| Model | 5 ft | 10 ft | 15 ft | 20 ft | 25 ft | 30 ft |
|---|---|---|---|---|---|---|
| SP32102EE | 65 GPM | 54 GPM | 45 GPM | 10 GPM | – | – |
| SP3210X152 | 65 GPM | 54 GPM | 45 GPM | 10 GPM | – | – |
| SP32152EE | 80 GPM | 70 GPM | 56 GPM | 34 GPM | – | – |
| SP3215X202 | 80 GPM | 70 GPM | 56 GPM | 34 GPM | – | – |
| SP32202EE | 90 GPM | 85 GPM | 71 GPM | 51 GPM | – | – |
| SP3220X252 | 90 GPM | 85 GPM | 71 GPM | 51 GPM | – | – |
Overall Dimensions (inches)
Applications
- In-ground pools of all types and sizes (including in-floor cleaning systems, solar heating systems, water features)
- In-ground spas or in-ground pool/spa combinations
- Fountains
