Description
The BQ-series is a submersible stainless steel channel impeller pump designed for handling raw sewage and wastewater having a corrosive nature.
All the wetted parts are made of cast 304 stainless steel. Wide opening channel impeller and shaver mechanism of the suction cover performs smooth dewatering even the liquid contains suspended solids.

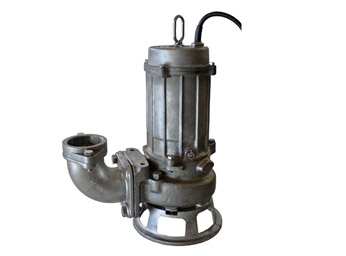

Catalogue Tsurumi Cast Stainless Steel Pumps with Channel Impeller BQ
Performance Curves
Model Selection 50/60Hz
| Discharge Bore (mm) | Model | Motor Output (kW) | Phase | Starting Method | Solids Passage (mm) |
|---|---|---|---|---|---|
| 50 | 50BQ2.4 | 0.4 | Three | D.O.L. | 19 / 17 |
| 50 | 50BQ2.75 | 0.75 | Three | D.O.L. | 20 / 24 |
| 50 | 50BQ2.75H | 0.75 | Three | D.O.L. | 20 |
| 80 | 80BQ21.5 | 1.5 | Three | D.O.L. | 25 |
| 100 | 100BQ42.2 | 2.2 | Three | D.O.L. | 40 |
| 100 | 100BQ43.7 | 3.7 | Three | D.O.L. | 53 / 45 |
| 100 | 100BQ43.7H | 3.7 | Three | D.O.L. | 35 |
