Description
| Discharge Bore(mm) | 50 ･ 80 (100) |
|---|---|
| Motor Output(kW) | 0.75 – 5.5 |

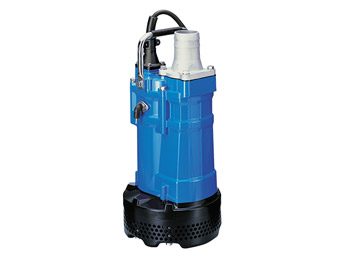

The KTVE-series is a submersible three-phase automatic portable drainage pump. An innovative electrode type relay unit built into the pump automatically starts and stops the pump to eliminate dry-running. This mechanism greatly reduces power consumption and extends operating life. Though the pump is a three-phase unit, it is designed to weigh lighter for portability, yet it can be used for pumping liquid found in ordinary construction and foundation works. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air. The slim design allows the pump to be placed in a confined space.
Specification
Performance Curves
Model Selection
| Discharge Bore (mm) | Model | Motor Output (kW) | Phase | Starting Method | Solids Passage (mm) |
|---|---|---|---|---|---|
| 50 | KTVE2.75 | 0.75 | Three | D.O.L. | 8.5 |
| 50(80)* | KTVE21.5 | 1.5 | Three | D.O.L. | 8.5 |
| 50(80)* | KTVE22.2 | 2.2 | Three | D.O.L. | 8.5 |
| 80(100)* | KTVE33.7 | 3.7 | Three | D.O.L. | 8.5 |
| 80(100)* | KTVE35.5 | 5.5 | Three | D.O.L. | 8.5 |
