Description

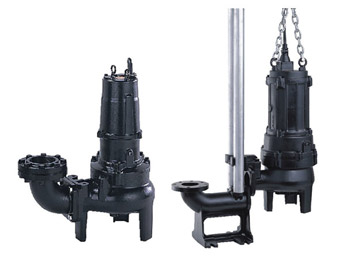

The UZ-series is a 4-pole-motor-based, middle-sized submersible vortex pump design for handling raw sewage, wastewater and liquid carrying solid matters and fibrous materials. Rotation of the impeller produces vortex flow in the pump casing, which allows those foreign matters to be pumped out with minimum contact to the impeller. Since this mechanism does not require the foreign matters to pass through the impeller vane, the pump offers practically unchokable pumping. The UZ-series is capable of handling the maximum solid size that is equivalent to its discharge bore.
Catalogue Tsurumi Pumps with Vortex Impeller UZ
Performance Curves
Model Selection
| Discharge Bore (mm) | Model | Motor Output (kW) | Phase | Starting Method | Solids Passage (mm) |
|---|---|---|---|---|---|
| 50 | 50UZ41.5 | 1.5 | Three | D.O.L. | 50 |
| 80 | 80UZ41.5 | 1.5 | Three | D.O.L. | 80 |
| 80 | 80UZ42.2 | 2.2 | Three | D.O.L. | 80 |
| 80 | 80UZ43.7 | 3.7 | Three | D.O.L. | 80 |
| 80 | 80UZ45.5 | 5.5 | Three | D.O.L. | 80 |
| 80 | 80UZ47.5 | 7.5 | Three | D.O.L. | 80 |
| 80 | 80UZ411 | 11 | Three | Star-Delta | 80 |
| 100 | 100UZ43.7 | 3.7 | Three | D.O.L. | 100 |
| 100 | 100UZ45.5 | 5.5 | Three | D.O.L. | 100 |
| 100 | 100UZ47.5 | 7.5 | Three | D.O.L. | 100 |
| 100 | 100UZ411 | 11 | Three | Star-Delta | 100 |
