Description
Application
- Mixing and circulation of activated sludge
- Flow generation in water channels
- Industry
- Oxidation Ditches
Thrust: 406 – 976 lbf (470 – 4340 N)
Features & Benefits

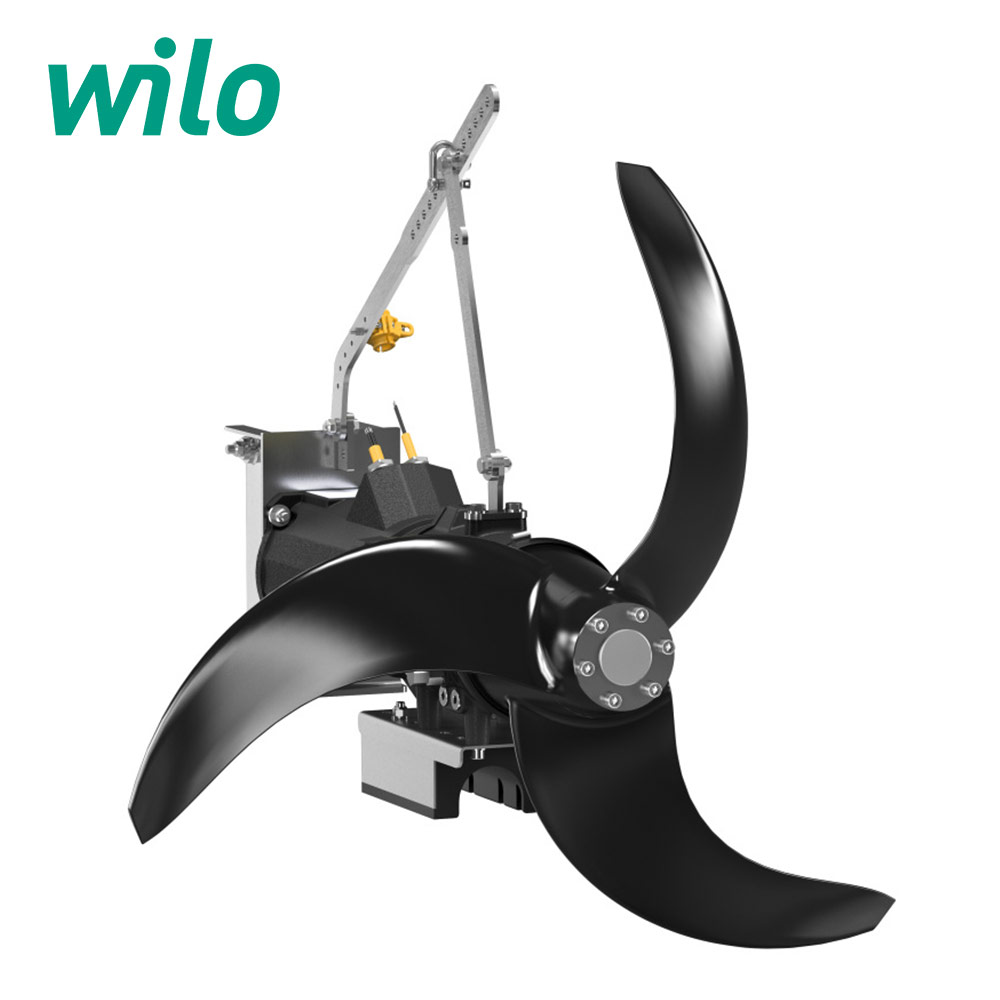

- Slow-running submersible mixer with two-stage planetary gear
- Flexible installation
- 2-stage planetary gear for adjusting the propeller speed
- Self-cleaning propeller
- Propeller blades can be replaced individually
- Easy-to-install blades and hub
- ATEX and FM versions
Technical Data
- Submerged operating mode: S1 (continuous duty)
- Max Temp: 104°F (40°C)
- Protection class: IP 68
- Two-stage planetary gear with exchangeable second planetary stage
- Permanently lubricated anti-friction bearing
- Power connection: 3~460 V, 60 Hz
Materials of Construction
- GFK Propeller
- Stainless Steel Gear Shaft
- SiC/SiC Combination Mechanical Seal
