APPLICATIONS
• Civil, Industrial, farming, fire-fighting, boosting systems
• Water treatment plants (reverse osmosis, filtrations)
• Irrigation system
• Washing system
• Movement of hot and cold water for heating, cooling and air-conditioning system.
• Boiler feeding
• Movement of moderately aggressive chemical liquids without solids.
MATERIALS
• Impeller, diffusers, casing cover, outer casing, shaft sleeve, coupling covers,
fixing in contact with liquid: AISI 304 stainless steel
• Bottom casing: AISI 304 stainless steel (EVM) – cast iron (EVMG),
AISI 316L (EVML)
• Motor bracket and base: cast iron (not in contact with the pumped liquid)
• Bearings (in contact with liquid): tungsten carbide
• Mechanical seal: Silicon carbide/carbon/Viton
• Shaft: AISI 316 stainless steel
• Tie rods and fixings not contact with liquid: zinc coated stainless steel

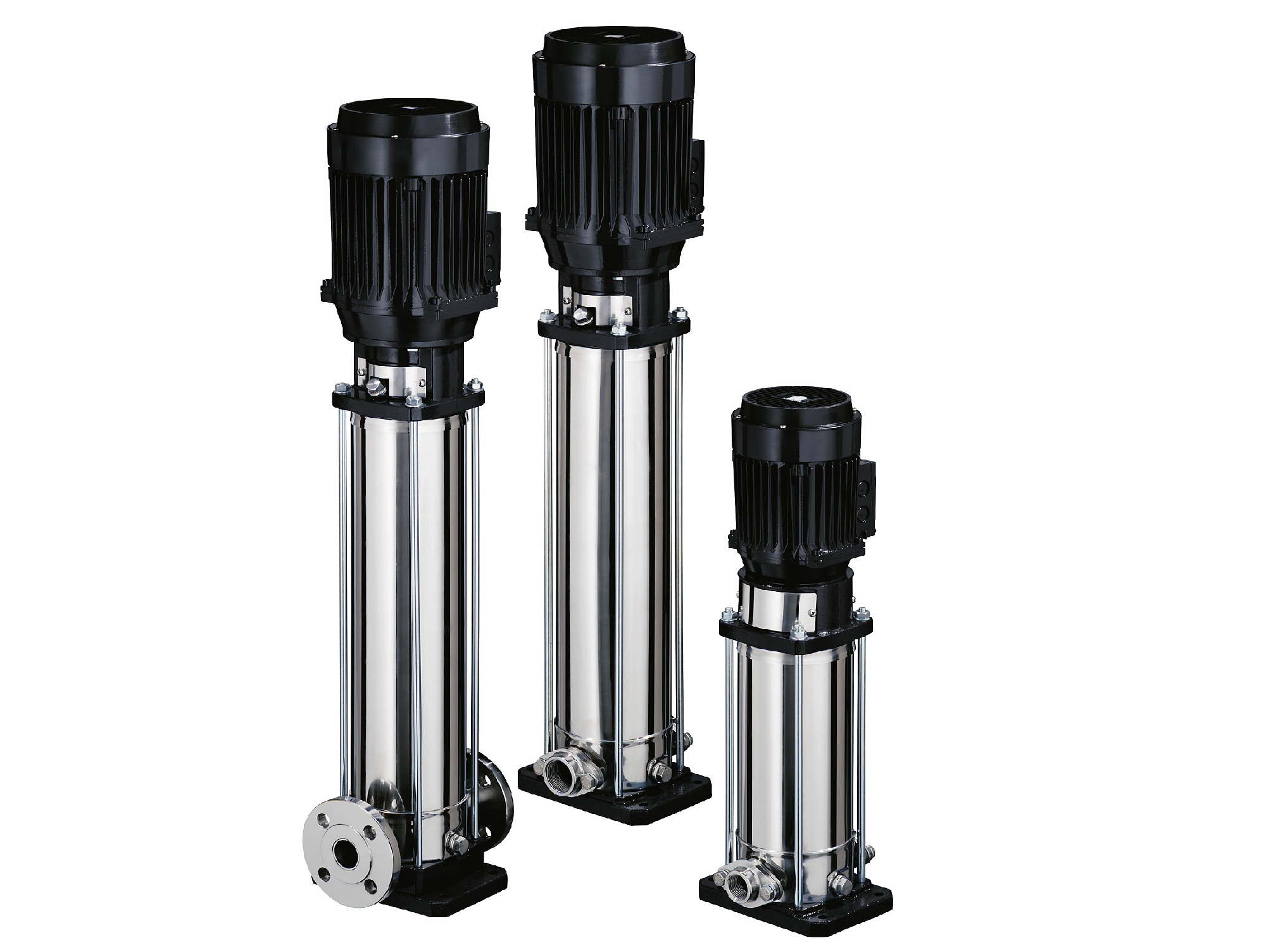

EBARA Corporation was established in 1912 as a pump manufacturer and today EBARA is the world’s foremost manufacturer
of pumps and pump system. EBARA is proudly presenting Vertical Multi-stage pump type EVM, manufacture with great
experience of EBARA in design and production of stamped stainless steel pumps. EBARA EVM pumps offer technically advance
designs to meet most market demands, including pumping of aggressive liquid.
Two standard pump options are available to satisfy most of the market requirements:
– EVM(G): Bottom casing in cast iron, other liquid contact parts in SS304 stainless steel for general
water supply usage
– EVM(L): All wetted contact parts in SS316 stainless steel for aggressive liquid pumping operation.
Optional materials available upon request: All wetted contact parts in SS304 stainless steel for industrial
pumping applications.
