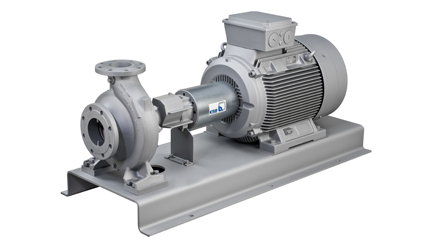

| DesignKSB-Etanorm SYT Horizontal, long-coupled volute casing pump in back pull-out design with ratings and main dimensions to EN 733, single-stage, with replaceable casing wear rings. Design to ATEX. Application Heat transfer systems (DIN 4754, VDI 3033) or hot water recirculation (DIN 4752). |
Overview of technical data
| Type of bearing | Rolling element and plain bearings |
| Casing partition | Radially split |
| Drive frequency | 50 Hz / 60 Hz |
| Type of drive | Electric motor, turbine |
| Drive voltage | Low voltage |
| No. of impeller entries | Single entry |
| Impeller material (EN standard) | GJL- 250;JL 1040 |
| Type of installation | Long- coupled |
| Type of coupling | Direct |
| Type of lubrication | Grease / Oil lubrication |
| Max. permissible fluid temperature | 350 °C |
| Nozzle position | End suction |
| Maximum rated pressure (discharge) | PN 16 |
| Pull-out design | Yes |
| Pump set location | Dry installed |
| Shaft material (EN standard) | 1. 4021.05 HRC 55 |
| Suction characteristics | Non- priming |
| Type of casing | Volute casing |
| Type of impeller | Radial |
| Type of connection | Flange |
| Casing material (EN standard) | GJS- 400-15;GJS-400-18-LT;JS 1025;JS 1030 |
| eClass assignment | 36410000; 36410100;36410101 |
| Maximum head | 102, 00 m |
| Minimum head | 3, 00 m |
| Installation position | Horizontal |
| Shaft seal type | Mechanical seal |
| Main applications | Industry and process engineering; Building services;Oil / Gas |
| Casing material | Nodular cast iron |
| Maximum discharge-side pressure | 16 bar |
| Type of installation | Stationary |
| Maximum flow rate | 740 m³/h |
| Minimum flow rate | 1 m³/h |
| Maximum speed of rotation | 3. 500 1/min |
