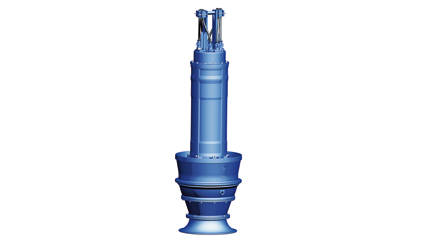

KSB-Amacan-S
Design
Wet-installed submersible motor pump with mixed flow impeller, singlestage, for installation in discharge tubes, explosion protection to ATEX II G2 T3.
Applications
Handling of water without stringy substances in irrigation and drainage pumping systems, general water supply systems, water pollution and flood control systems.
Overview of technical data
Type of bearing Rolling element bearings
Casing partition Radially split
Diffuser material (EN standard) 1. 4057;1.4021
Drive Electric motor
Drive frequency 50 Hz / 60 Hz
Type of drive Electric motor
Drive voltage Low voltage
Connection to power supply 400/ 690 V; 3~
No. of impeller entries Single entry
Impeller material (EN standard) CC480K- GS;CC333G-GS
Type of installation In- line
Type of coupling None
Type of lubrication Grease lubrication
Max. permissible fluid temperature 40 °C
Nozzle position In- line
Pump set location Wet well
Shaft material (EN standard) 1. 4021;1.4057
Suction characteristics Non- priming
Suitable for drinking water Yes
Type of impeller Mixed flow impeller
Casing material (EN standard) JL 1040
eClass assignment 36410000; 36410106;36410100
Free passage 160 mm
Maximum head 55, 00 m
Minimum head 2, 50 m
Installation position Vertical
Shaft seal type Mechanical seal
Main applications 00; Water;Energy;Mining / Dredges
Casing material Cast iron
Maximum drive rating 1. 100 kW
Type of installation Stationary
Maximum flow rate 21. 600 m³/h
Minimum flow rate 500 m³/h
Maximum speed of rotation 1. 800 1/min
