Design

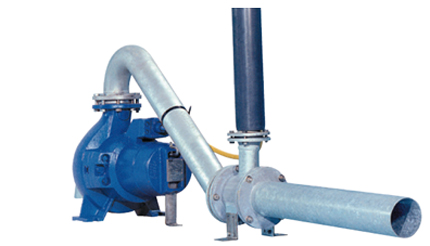

KSB-Amajet Stationary or portable unit with horizontal or vertical submersible motor propulsive jet pump with non-clogging free-flow impeller. Motor rating 5.5 to 27 kW. Available variants: Amajet, SewerAmajet, SwingAmajet, MultiAmajet.
Applications
Cleaning of stormwater tanks and storage sewers.
Overview of technical data
Type of bearing Rolling element bearings
Casing partition Radially split
Drive IEC standardized motor
Drive frequency 50 Hz / 60 Hz
Type of drive Electric motor
Drive voltage Low voltage
Connection to power supply 400 V, 3~
Explosion protection EEX D IIB T4; EEX D IIB T3
No. of impeller entries Single entry
Impeller material (EN standard) 1. 4517;0.9635;JL 1040
Type of installation Close- coupled
Type of coupling None
Type of lubrication Grease lubrication
Max. permissible fluid temperature 40 °C
Nozzle position Side- top
Pump set location Wet well
Shaft material (EN standard) 1. 4021
Suction characteristics Non- priming
Type of impeller Free flow impeller; Open
Type of connection Flange, loose flange
UNSPSC classification 4015150300
Casing material (EN standard) JL 1040
eClass assignment 36410100; 36410000;36410104
Installation position Horizontal or vertical
Shaft seal type Mechanical seal
Main applications Water; Industry and process engineering;Waste water / sewage
Casing material Cast iron
Maximum drive rating 16 kW
Type of installation Stationary
Maximum flow rate 195 m³/h
Minimum flow rate 83 m³/h
Maximum speed of rotation 1. 750 1/min
