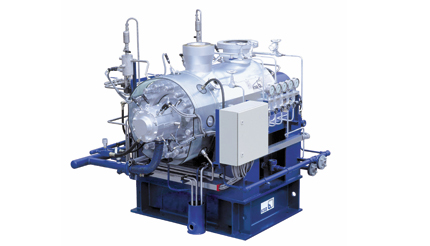

KSB-CHTC – Horizontal, multistage high-pressure barrel type pump

 KSB-CHTC – Horizontal, multistage high-pressure barrel type pump

Design

Horizontal, high-pressure barrel-type pump with radial impellers, single- and double-entry, multistage, with flanges / weld end nozzles to DIN and ANSI.

Applications

Handling of feed water and condensate in power stations and industrial facilities, generation of pressurized water for bark peeling machines and descaling equipment.

High operating reliability

1. In the case of axial thrust balancing by double drum, the
residual axial thrust is absorbed by a tilting-pad thrust
bearing

2. Optimisation of casing design in terms of line of action of
force

3. Adaptation of pump casing to rotor deflection line

Long service life

4. Transmission of axial forces to the bearing housing by
means of a cardanic ring avoids wear on the thrust bearing

5. Low NPSH value thanks to fitting of suction stage impeller as a standard

Ease of service

6. Replacement of pump cartridge without having to remove
the pump from the piping

7. Maintenance work on wear parts with no opening of the
pump

Reduced operating costs

8. Efficiency improvement through cellular surface wear
rings

Overview of technical data
