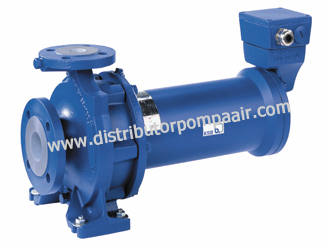

Design
Low noise emission, with radial impeller, singlestage, single-entry, pump casing connecting dimensions to EN 733.
Applications
Handling of aggressive, flammable, toxic, volatile, or valuable liquids in the chemical and petrochemical industry, in environmental engineering and the general industry.
Drive
Three-phase, asynchronous canned motor, enclosure IP 55,
without explosionproof status. Thermal motor protection by
means of PTC thermistors. The motor design is in accordance
with IEC 60 034 (DIN VDE 0530).
Overview of technical data
| Type of bearing | Plain bearings |
| Casing partition | Radially split |
| Drive | IEC standardized motor |
| Drive frequency | 50 Hz / 60 Hz |
| Type of drive | Electric motor |
| Drive voltage | Low voltage |
| Connection to power supply | 220/ 400/690 V, 3~ |
| No. of impeller entries | Single entry |
| Impeller material (EN standard) | JL1040; JS1025 |
| Type of installation | Close- coupled |
| Type of coupling | Direct |
| Type of lubrication | Oil / Product lubrication |
| Max. permissible fluid temperature | 140 °C |
| Nozzle position | End suction |
| Maximum rated pressure (discharge) | PN 16 |
| Pull-out design | Yes |
| Pump set location | Dry installed |
| Shaft material (EN standard) | 1. 4021 |
| Suction characteristics | Non- priming |
| Type of casing | Volute casing |
| Type of impeller | Multi- vane impeller;Closed;Closed / Radial;Radial |
| Type of connection | Flange |
| Casing material (EN standard) | JS1025; JL1040 |
| eClass assignment | 36410100; 36410101;36410000 |
| Maximum head | 100, 00 m |
| Minimum head | 9, 00 m |
| Installation position | Horizontal or vertical |
| Shaft seal type | Canned motor pump |
| Main applications | Industry and process engineering |
| Casing material | Cast iron; Nodular cast iron |
| Maximum discharge-side pressure | 16 bar |
| Maximum drive rating | 18 kW |
| Type of installation | Stationary |
| Maximum flow rate | 250 m³/h |
| Minimum flow rate | 3 m³/h |
| Maximum speed of rotation | 3. 500 1/min |
