Design

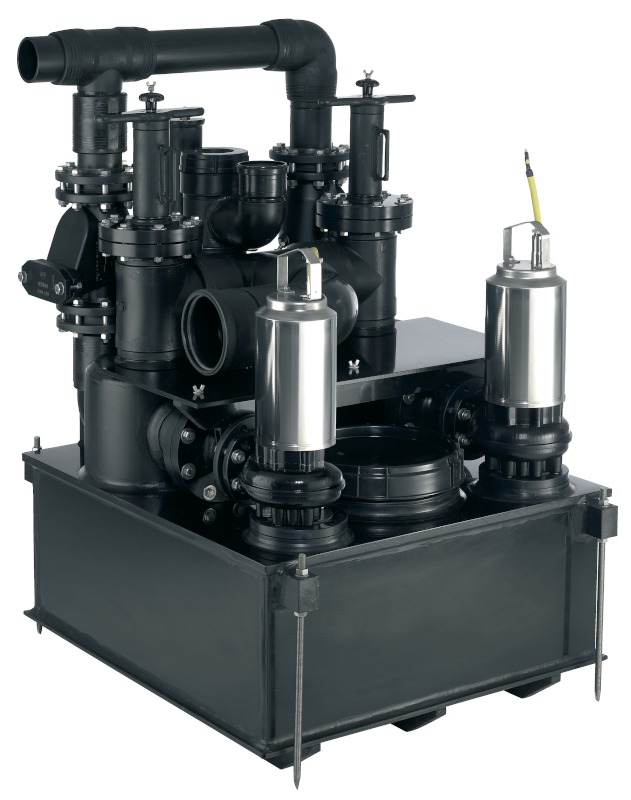

Sewage lifting unit with solids separation system
Application
The DrainLift FTS solids separation system is a sewage lifting unit for the drainage of commercial buildings and blocks of buildings (e.g. hotels, department stores, etc.).
Raw sewage that cannot be piped to the sewer system through the use of natural inclines and sewage from below the backflow level are to be piped to the public sewer system by means of an automatic lifting unit in accordance with DIN EN 12056/DIN 1986-100. Sewage containing mineral oils or explosive admixtures must be guided through oil precipitators and/or petrol precipitators; those containing fatty substances must go through grease traps and those with sand through grit chambers.
Special features / product benefits
- High efficiency, due to pumps with small free ball passage
- Large delivery heads
- System non-susceptible to clogging, due to solids separation
- Large tank volume
Technical data
Mains connection 3~400 V, 50 Hz- Mains connection cable (pumps) 10 m,
- Operating mode: S2-10 min (STS 65), S2-15 min (FA08.43E)
- Fluid temperature max. 40 °C
- Ambient temperature max. 40 °C
- Free ball passage 65 mm (STS 65), 70 mm (FA08.43E)
- Pressure port DN 100
- Inlet connection DN 150
- Ventilation DN 100
- Min. suction head (up to bottom edge of inlet) 750 mm
- Protection class (without switchgear) IP 68
- Gross tank volume 400 l
- Switching volume 300 l
